Portable Suction Apparatus

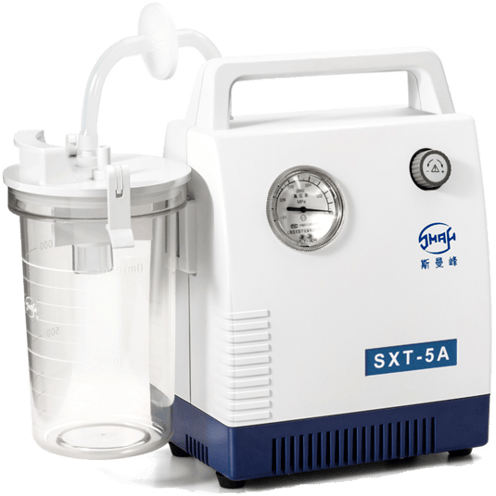

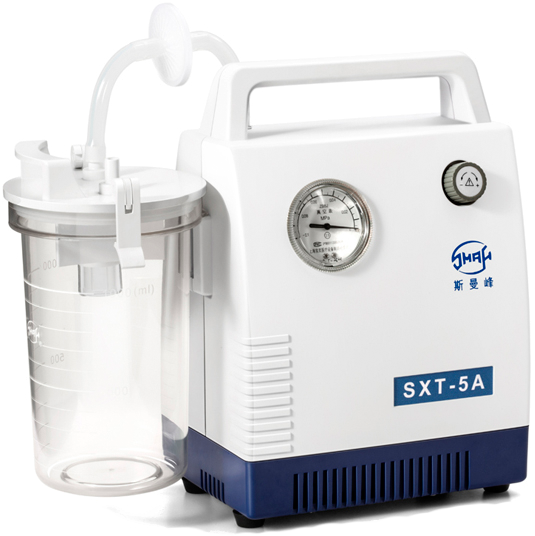

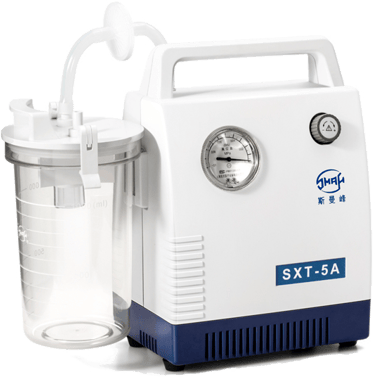

SXT-5A Portable Unit

SXT-5A is the High Vacuum/High Flow absorb phlegm unit, intended for temporarily and spontaneously suction of secretions in the upper respiratory tracts of patient.

It is widely used for emergency treatment in various hospital, first-aid conditions or center of social medical service.

Specification parameter:

  1. Max Vacuum:≥0.08Mpa(600mmHg)

  2. Vacuum range: 0.02(150mmHg)～Max Vacuum

  3. Flow rate:≥20L/min

  4. Noise:≥60dB(A)

  5. Jar capacity:1000ml(PC)

  6. Input:110VA

  7. Power supply:AC220V 50Hz

  8. Dimemsion:(1 set)405mm×200mm×360mm;

  9. G.W./N.W.:(1 set)5kg/4kg

Portable Suction Pump

Suction Pump

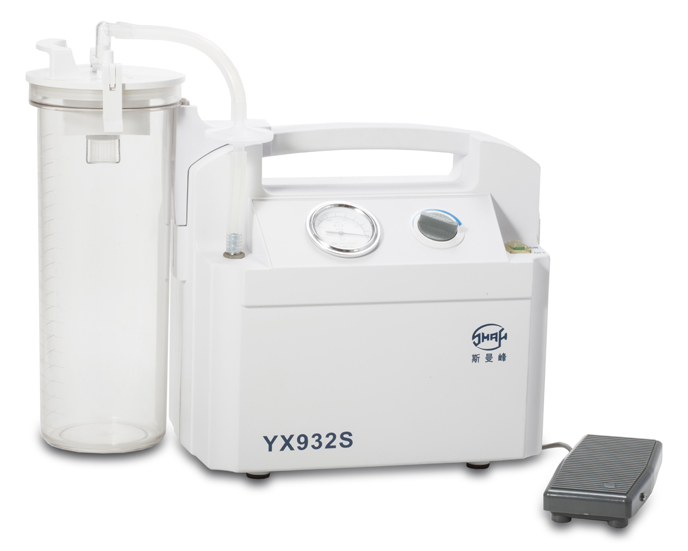

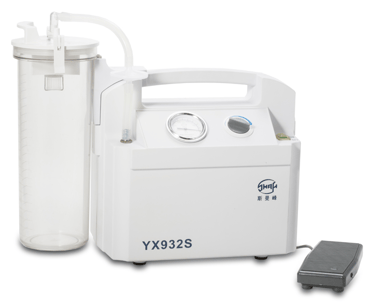

YX932S Suction Apparatus

YX932S Portable Suction Apparatus

High performance suction unit with double piston cylinders.Large fl ow rate of 32L/min. Comes with a filter that eliminates airborne contamination, a 2 litres storage bottle, metal suction piece and foot pedal for hands free operation.

Specification parameter

  1. Max vacuum: ≥0.09MPa (680mmHg)

  2. Adjustable vacuum range: 0.02MPa～0.09MPa

  3. Flow rate: ≥32 L/min

  4. Noise: ≥60 dB（A）

  5. Jar: 2000mL×1(PC)（standard configuration）

  6. Power supply: AC220V 50 Hz

  7. Input power: 150VA

  8. Dimension: 545mm× 260mm× 375mm

  9. G.W./N.W.: 7.5kg/5.5kg

Suction Pump

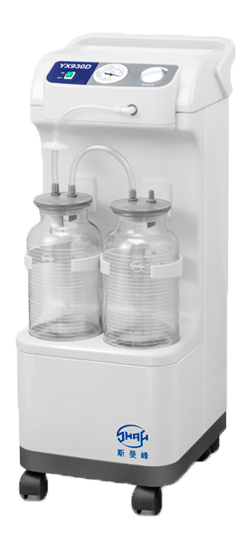

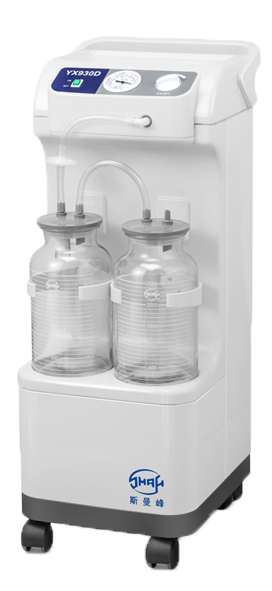

YX930D Suction Apparatus

YX930D Electric Suction Apparatus is a beauty, high vacuum, high flow and transportable medical suction unit. It is able to absorb varied mucus rapidly from body cavity or wound, to satisfy most demands in operating rooms, wards and so on.

  • Maintenance free, oil-less pump, and high flow rate with less pollution.

  • Large-diameter storage bottle, stopper with sealing ring,easy to open,fasten down and clean.

  • Overflow protection device prevents liquid from entering into the inner pipe.

  • Transparent non-toxic PVC hoses, easy for observation.

  • Air filter protects pump from being polluted.

  • Hand switch and foot switch installed in parallel, can be selected at will.

  • Work stably and durably, low noise,long service life.

Specification parameter

  1. Max Vacuum:≥0.09Mpa(680mmHg)

  2. Adjustable vacuum range: 0.02～0.09MPa(150～680mmHg)

  3. Flow rate:≥40L/min

  4. Noise :≥60dB(A)

  5. Storage bottles:2500ml×2(glass)

  6. Input:250VA

  7. Power supply:AC220V 50Hz

  8. Dimemsion:465mm×425mm×920mm

  9. G.W./N.W.:22.5kg/20kg

Suction Pump

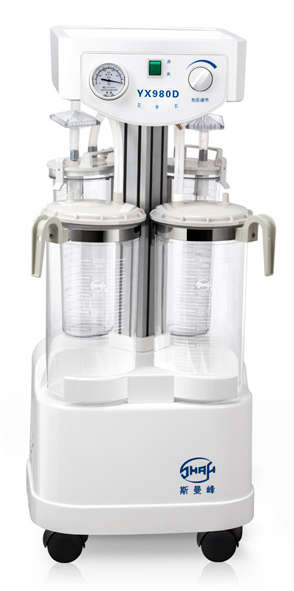

YX980D Electric Suction Apparatus

YX980D Electric Suction Apparatus offers high vacuum and high flow with double piston cylinders.

It rapidly builds up a powerful vacuum, and is especially used for surgical operations where large quantities of fluid must be suctioned out quickly. Advanced design idea as well as a perfect configuration performs satisfactory functions.

Specification parameter

  1. Max vacuum: ≥0.09MPa (680mmHg)

  2. Adjustable vacuum range: 0.02MPa～0.09MPa

  3. Flow rate:≥80L/min

  4. Noise: ≥60dB(A)

  5. Jar : 4000ml×2

  6. Power supply:AC220 50Hz

  7. Input power: 280VA

  8. Dim: 44cm ×50cm×99.5cm

  9. G.W./N.W.: 25kg/22kg
